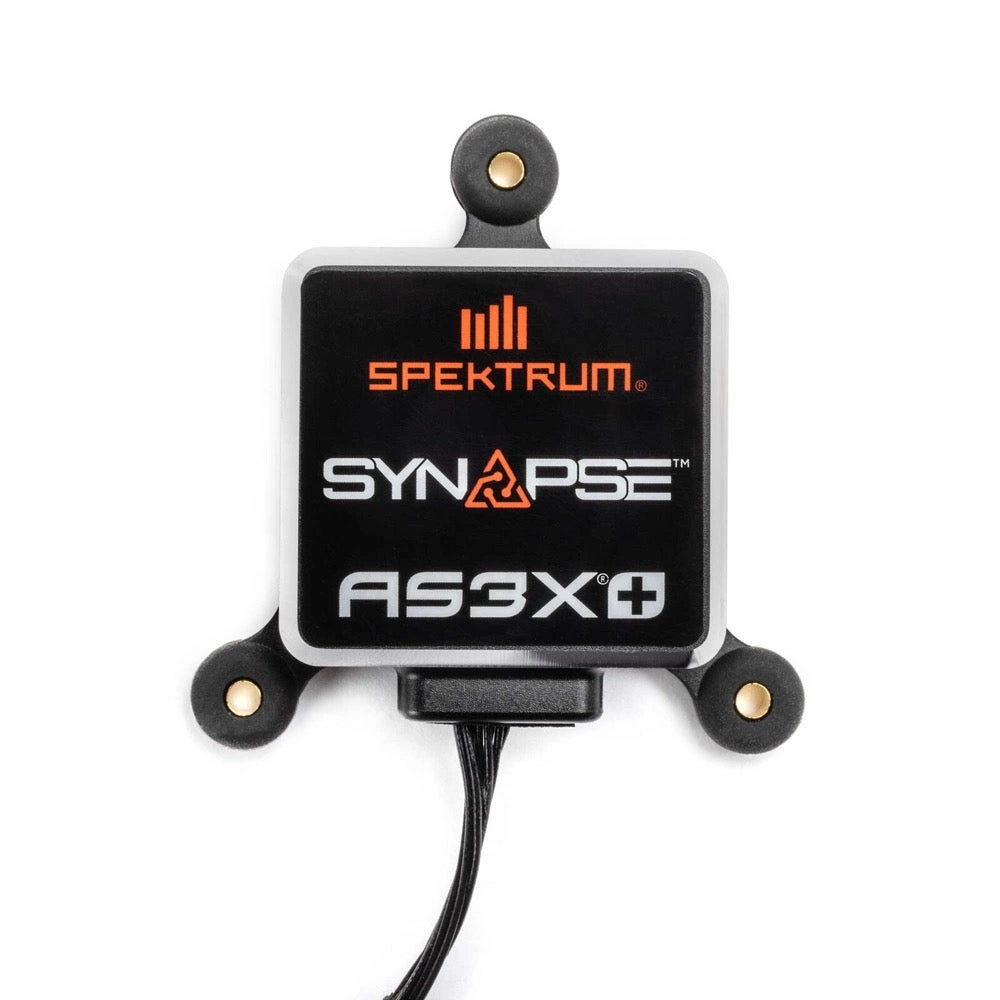

Spektrum Synapse AS3X+ & SAFE Stabilization Module Overview
The Spektrum™ AS6000 Flight Stabilization Module is more than just a gyro for the giant-scale pilot. First and foremost, the Synapse is compatible with the AR10410T, AR14410T and AR20410T PowerSafe Telemetry Receivers. It is tiny, with a footprint the size of a quarter that also features advanced telemetry sensing that lets you integrate real-time Variometer, G-Force, Altitude, and Gyro-Rate data to your flight status parameters.
The Synapse is simple to add to your model, allowing for a clean and efficient install that eliminates an additional point of failure that an inline gyro can introduce. Installation is easy.
NEXT GENERATION IN FLIGHT STABILIZATION
The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.
Key AS3X+ improvements include:
- Stop Lock and Release Rate parameters
- Heading Hold improvements
- Improved gryo filtering
- Canard and Thrust Vectoring Support
DESIGNED FOR GIANT SCALE AND TURBINE APPLICATIONS
Spektrum has taken years of customer feedback on the AS3000 and purpose-built the Synapse and AS3X+ algorithm with turbine and giant scale aircraft in mind. We've vastly improved the flying characteristics, designed the system to operate flawlessly in noisy turbine environments and given you 20 stabilized outputs. Now, you can genuinely set your new model's gyro up in less than 5 minutes without a PC, cables or stick position commands. It's so easy, anyone can do it!
NOW WITH SAFE
You now have access to our SAFE technology at the flip of a switch which can potentially turn any disastrous situation into a complete recovery. Have the confidence and seconds you need to regroup after an orientation loss or distraction at the field. SAFE can even be selected for the failsafe position with predefined bank and pitch angles. SAFE has saved thousands of aircraft and can potentially save yours.

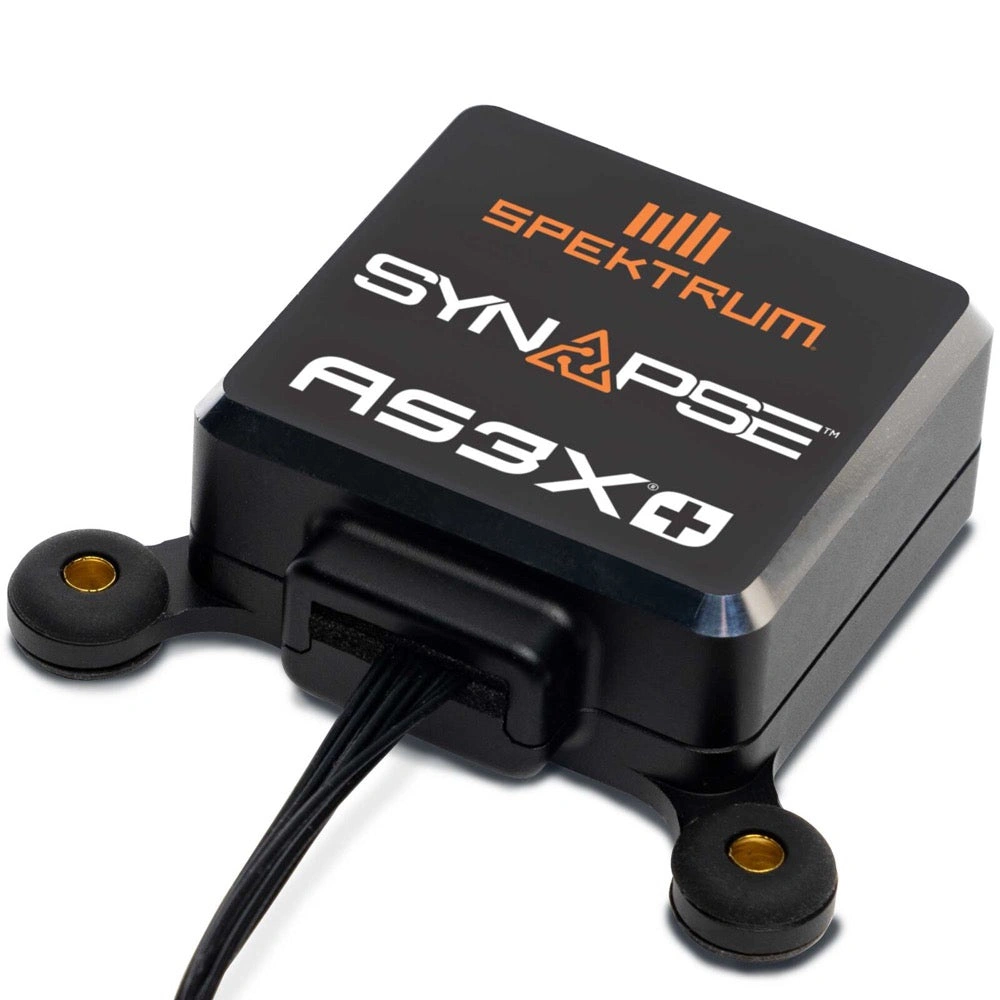

ALUMINUM CASE
The Synapse case is machined aluminum with three grommeted hard mounts for easy installation in most aircraft.
ACOUSTIC ISOLATION
Synapse's gyro sensor is encased in a sound and vibration reduction insulation designed for turbine applications. While other systems require third party sound damping, we've designed Synapse to work flawlessly in most turbine applications.
LOCKING SENSOR CABLE
Synapse's sensor cable is now designed with a locking connector on the RX side and the sensor side is internally mounted inside Synapse. This ensures that your synapse remains connected to your receiver regardless of in-flight vibrations.
Spektrum Synapse AS3X+ & SAFE Stabilization Module Features
- The all-new AS3X+ stabilization algorithm provides the ultimate in-flight performance and feel
- Thrust vector and canard support with Spektrum's new multi-gyro system (up to four independent gyro systems in one device)
- Intuitive forward programming makes Synapse the easiest system to set up without the need for any external device
- New parameters and new menus with forward programming
- Gyro sensor is encased in sound and vibration reduction insulation designed for turbine applications
- Machined aluminum and anodized case housing with three grommeted hard mounts
- Internally mounted locking cable design prevents any possible in-flight disconnection
Specifications
- Product Height: 0.363' (9 mm)
- Product Length: 1.016' (26 mm)
- Product Weight: 0.1 oz (2.83g)
- Product Width: 1.016' (26 mm)
- Technology: AS3X+
